Pre-Owned, Sokkia SRX-5 5″ Reflectorless with RC4 & Prism

Description

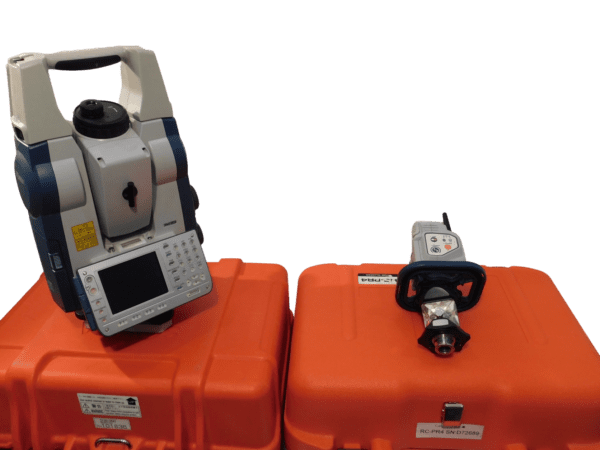

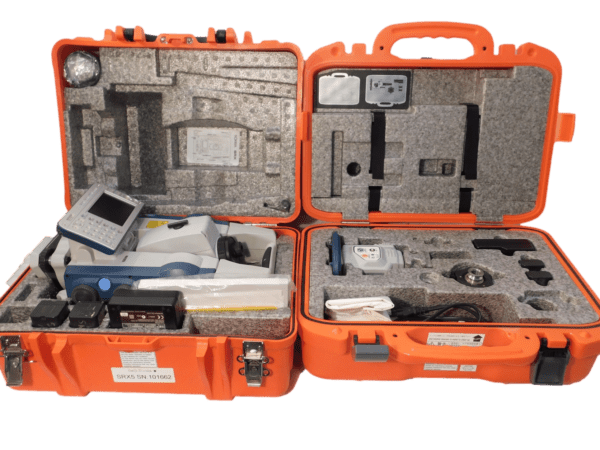

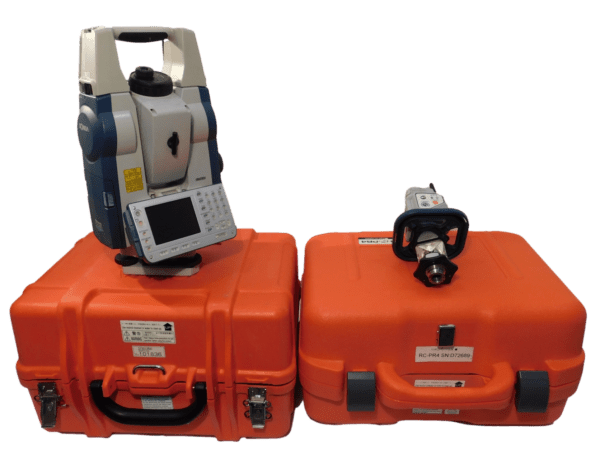

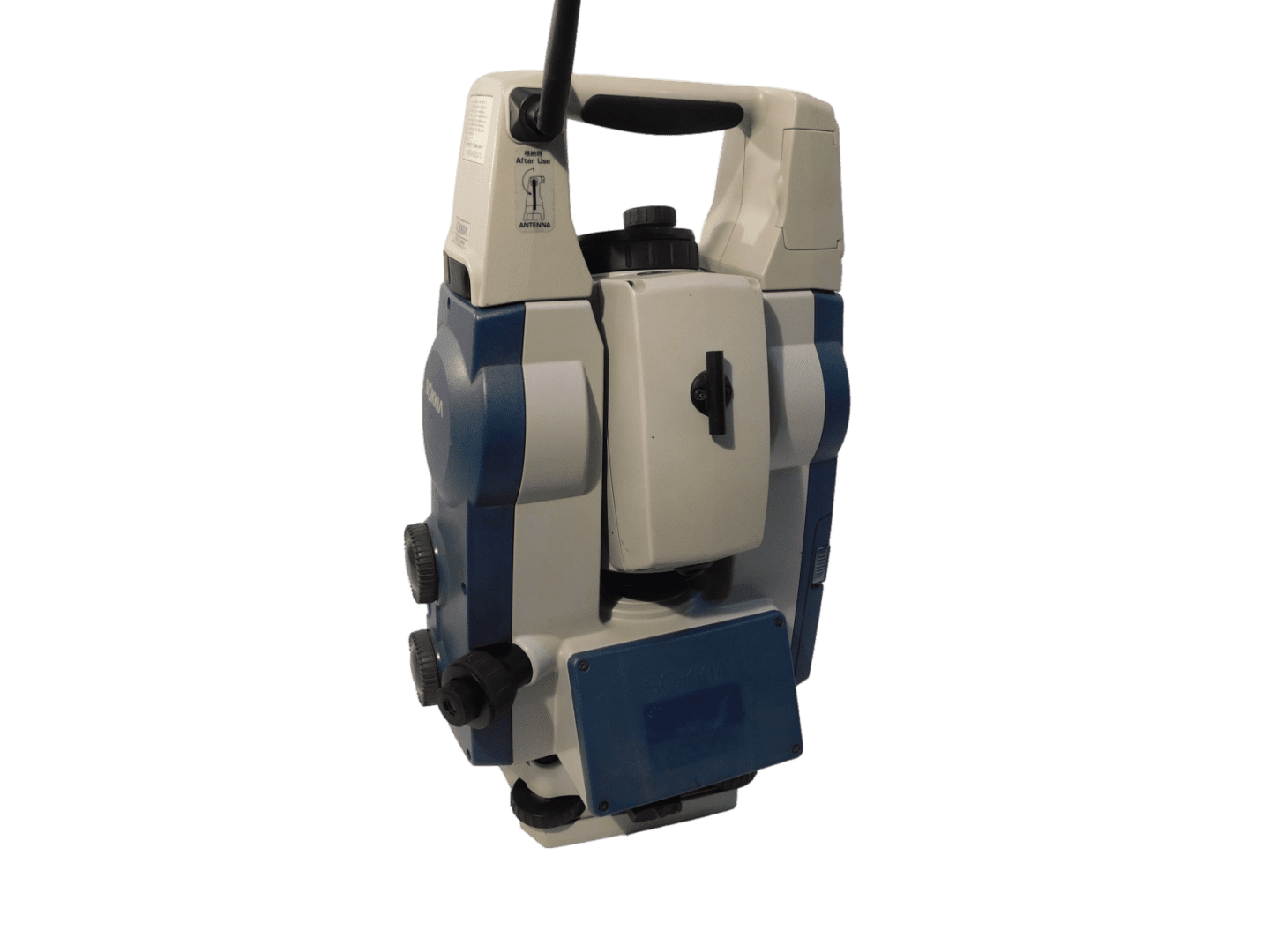

Pre-Owned, Sokkia SRX-5

5″ Reflector-less with RC4 & Prism

•  2 Batteries
• 1 Dual Charger
• 1 Carry Case

RC-PR4 KIT with ATP-1 Prism

• 2 Batteries
• 1 Dual Charger
• 1 360 prism
• 1 Carry Case

30 day warranty on this system

• • SRX5 – 5″ (1.5 mgon)
• IACS (Independent Angle Calibration System): Provided only on 1″ and 2″ models (SRX1 and SRX2)
• Dual-Axis Compensator Working Range: +/-14′ (+/-174 mgon)
• Distance Measurement: Modulated laser, phase comparison method
• Laser Output: Reflectorless mode: Class 3R, Prism/Sheet mode: Class 1
• Measuring Range:
  • 1 AP Prism: 4.3 to 16,400 ft (1.3 to 5,000 m / to 6,000 m) under good conditions
  • ATP1/ATP1S 360° Prism: 4.3 to 3,280 ft (1.3 to 1,000 m)
  • Reflective Sheet Target: 4.3 to 1,640 ft (1.3 to 500 m with RS90N-K (90×90 mm) reflective sheet
  • Reflectorless: 1 to 2,620 ft (0.3 to 800 m) with Kodak Gray Card White side (90% reflective)
• Accuracy (ISO17123-4:2001) (D=measuring distance):
  • AP or ATP1/ATP1S 360° Prism
    • (1.5 + 2 ppm x D) mm
  • Reflective sheet target
    • (2 + 2 ppm x D) mm
  • Reflectorless
    • (2 + 2 ppm x D) mm : 1<=D<=650 ft (0.3<=D<=200 m)
    • (5 + 10 ppm x D) mm : 650 <=D<=1,140 ft (200<D<=350 m)
    • (10 + 10 ppm x D) mm : 1,140<=D<=3,280 ft (350<D<=800 m)
  • Tracking Accuracy
    • 1.2 mm at 100 m
• Motor Drive: DC motor drive with self-locking free rotation system
• Rotation Speed at 68°F (20°C): Max. 70°/s, Rotation time: approx. 5s for 360° rotation
• Auto-Tracking / Auto-Pointing: Pulse laser transmitter and CMOS detector with co-axial optics
• Range
  • AP prism: 3,280 ft (1,000 m)
  • ATP1/ATP1S: 360&deg; Prism: 1,960 ft (600 m)
  • Reflective Sheet Target: 16.4 to 160 ft (5 to 50 m)
• Interface and Data Management:
  • Operating System: Windows CE Ver.5.0
  • Display / Keyboard: 3.7in. transmissive TFT color LCD / 32 keys with backlight
  • Data Storage: 750MB internal memory, CF card, SD card, USB flash memory
  • Interface: USB1.1 Host (Type A) and Client (Type miniB) / RS-232C
  • Bluetooth wireless modem (option): Ver.1.2, Class 1 (built into RC-TS3 and H-BT1 handles)
• Dust And Water Protection: IP64 (IEC 60529:2001)
• Operating Temperature: -4 to +122°F (–20 to +50°C)
