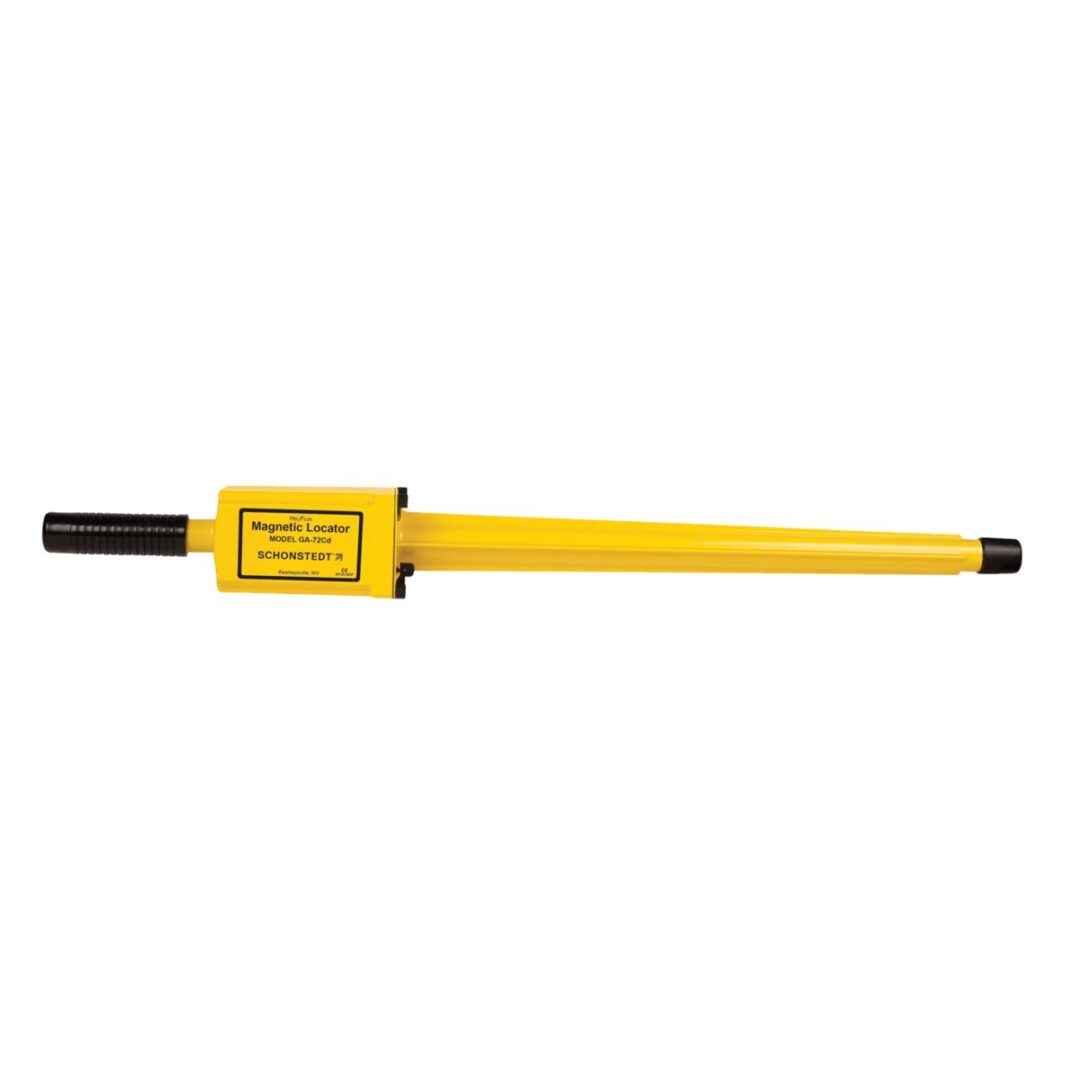

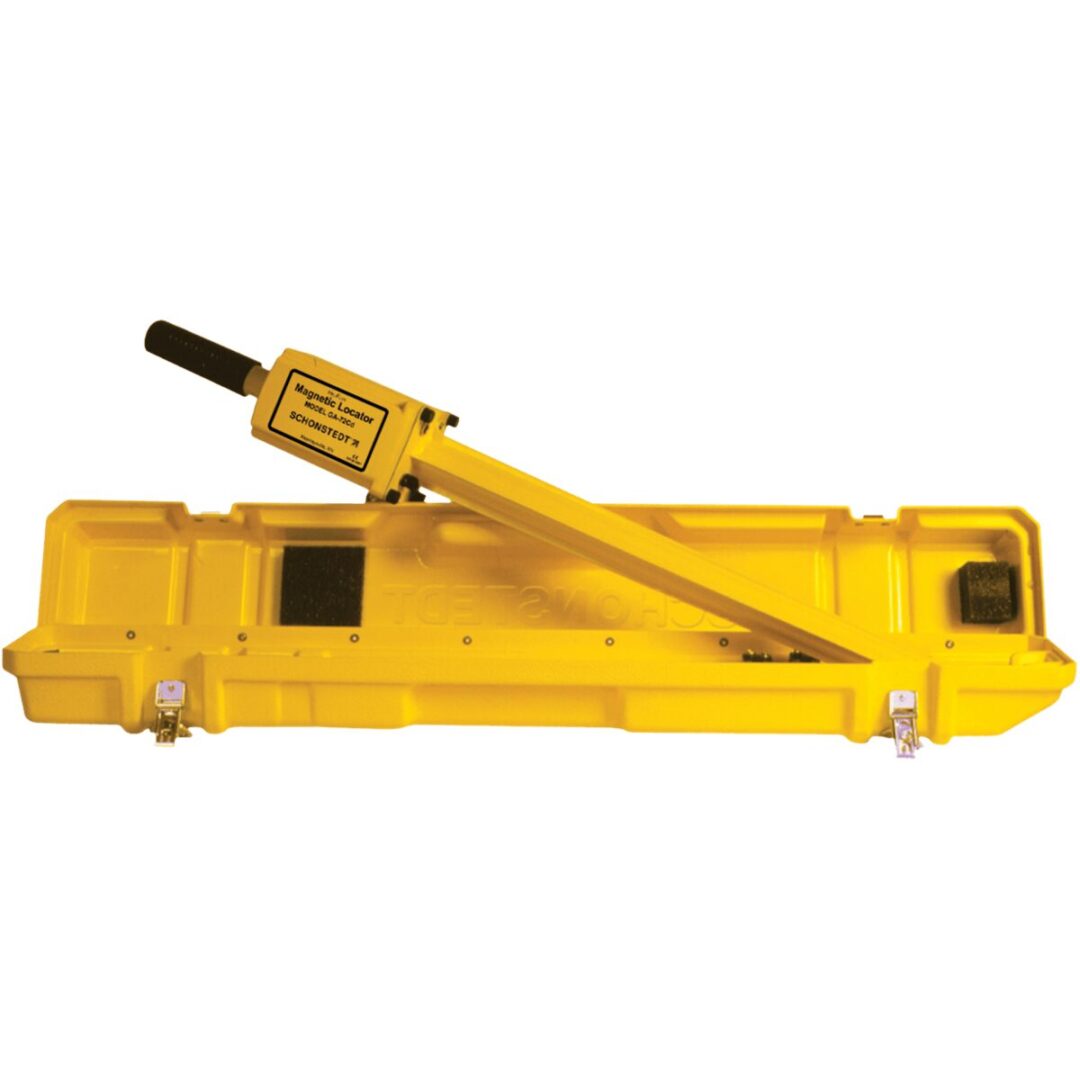

Schonstedt, GA-72Cd Magnetic Locator

Description

SCHONSTEDT, GA-72Cd Magnetic Locator
Audio + Visual Output for Greater Accuracy

Audio Output:Switch at “A” Signal increases or decreases in volume with gradient-field intensity
Switch at “B” Signal increases or decreases in frequency with gradient-field intensity.

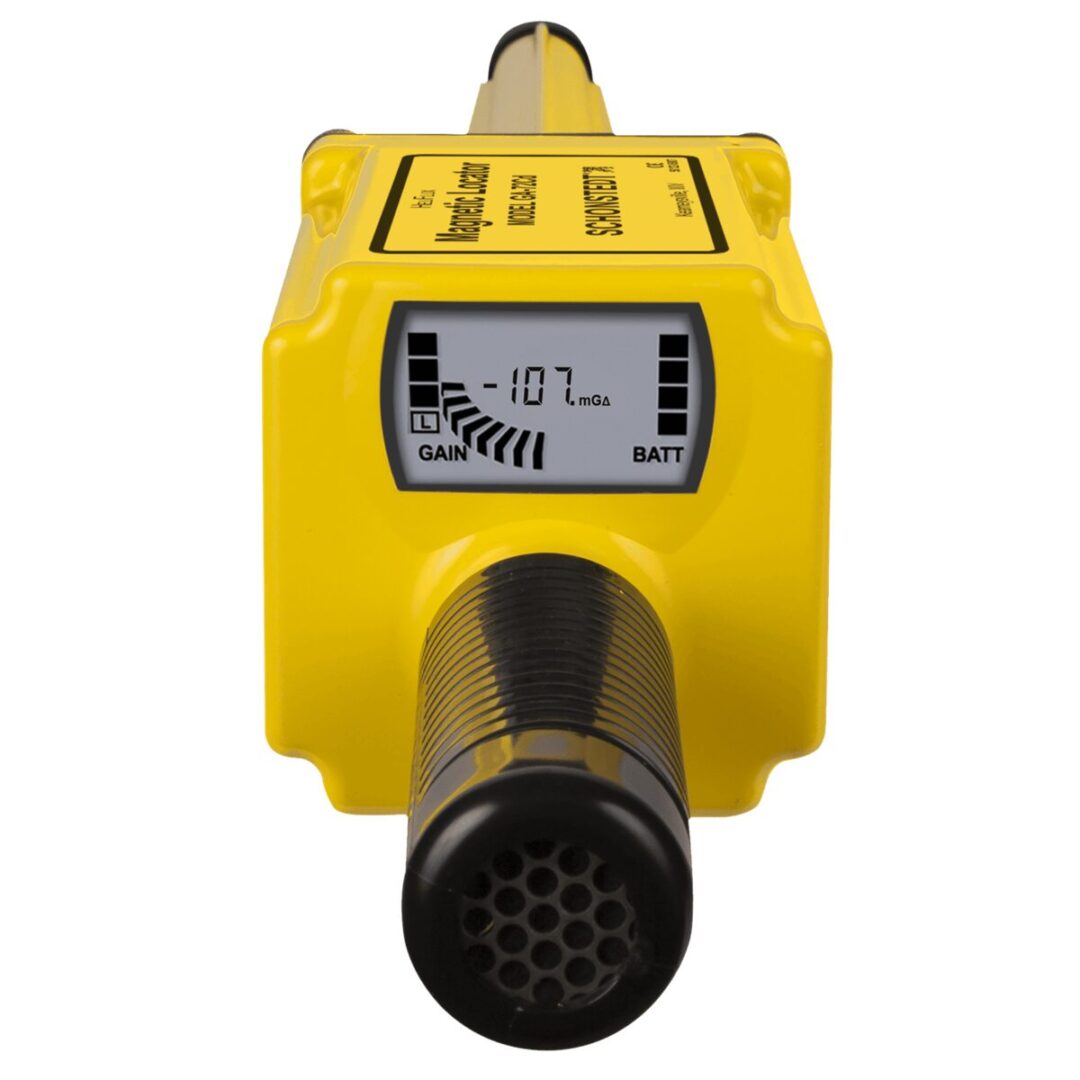

Video Output:Digital readout and expanding bar graphs indicate polarity (+ or-) and relative
strength of the magnetic field.
Input Power:Supplied by two 9V batteries
Battery Life:40 Hours (intermittent usage)
Battery Check:4-segment LCD BATT indicator
Output:Approximately 40 Hz audio tone on speaker.
Tone frequency increases or decreases with gradient-field intensity.
Weight:Approximately 2.5 lb (1.14 kg)
Operating Temp:-13° to 140°F (-25° to 60°C)
Overall Length:34.5″ (87.6 cm)
Waterproof Length:21″ (53.3 cm)
Nominal Sensor Spacing:14″ (35.6 cm)
Construction:Rugged, all solid state, polycarbonate & ABS casing
