(New) Pre-owned ADL-Vantage 35- p/n 82218-11 35-WATT UHF RADIO 430-473UHF

Description

PAC-CREST ADL-Vantage 35- p/n 82218-11

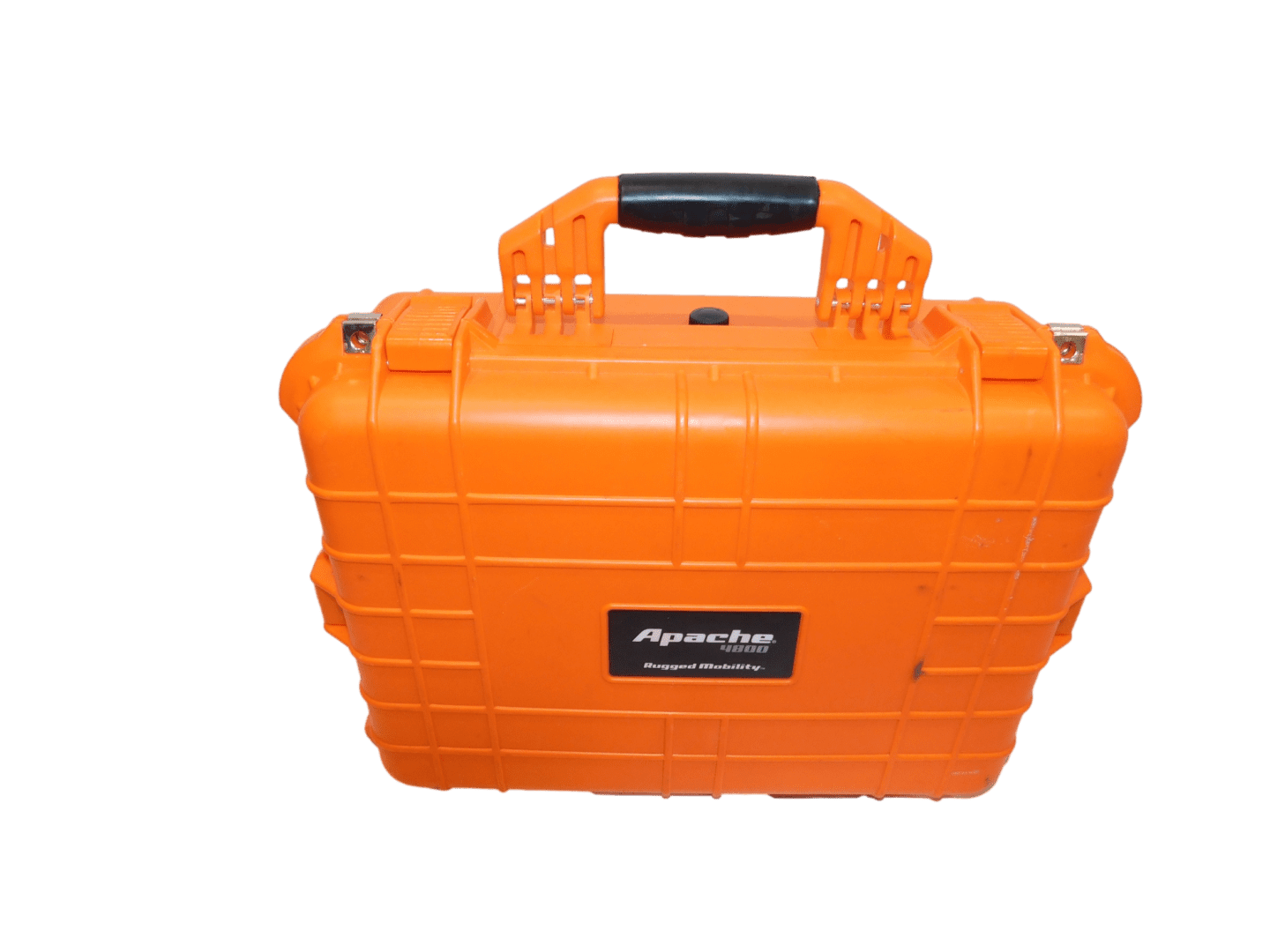

• 35-WATT UHF RADIO 430-473UHF

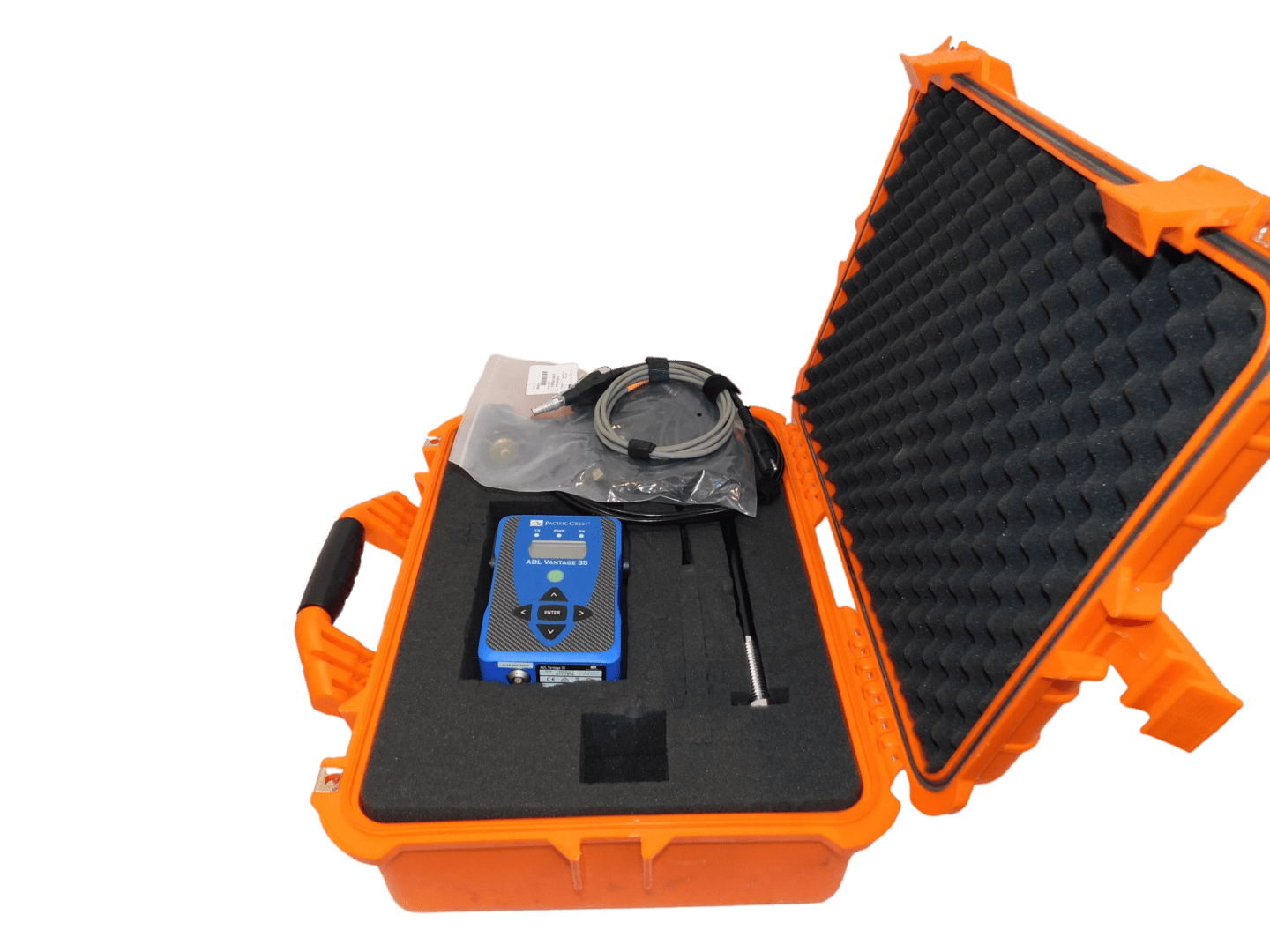

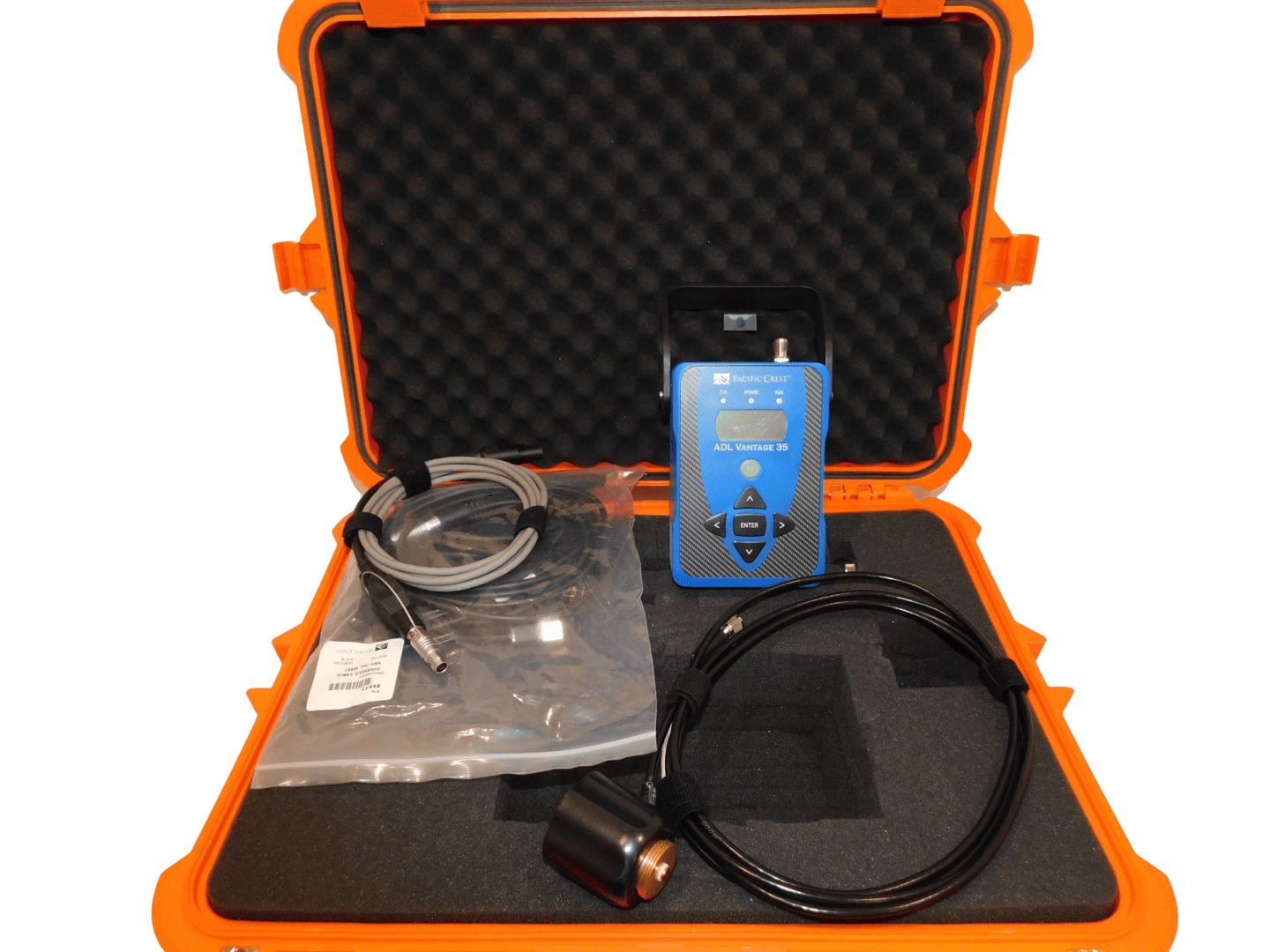

• Power and Communication cables included
• Never used in the field…

WHIP ANTENNA AND MOUNT AND CABLE (NOT INCLUDED)

User_Guide_ADL_Vantage_Family

Technical Specifications
General Specifications
Communication 1 RS-232 port, 115.2 kbps maximum
User Interface 2-row, 16-character LCD display with five navigation buttons
Power
Input Power ADL Vantage: 9.0 V DC – 30.0 V DC, 2 amp maximum
ADL Vantage Pro: 10.0 V DC – 30.0 V DC, 15 amp maximum
ADL Vantage 35: 10.0 V DC – 16.0 V DC, 15 amp maximum
Warning – Supplying more than the specified current can damage the
radio.
Power Consumption (Rx) ADL Vantage:0.6 W nominal @ 12.0 V DC
ADL Vantage Pro and ADL Vantage 35: 0.7 W nominal @ 12.0 V DC
with LCD backlight off; 1.7 W with LCD backlight on
Power Consumption (Tx) ADL Vantage:
– 13.4 W nominal @ 12.0 V DC, 4 W RF output
– 7 W nominal @ 12.0 V DC, 1 W RF output
ADL Vantage Pro:
– 130 Watts nominal @ 12.0 V DC, 35 W RF output
– 55 Watts nominal @ 12.0 V DC, 8 W RF output
– 32 Watts nominal @ 12.0 V DC, 2 W RF output
ADL Vantage 35:
– 115 Watts nominal @ 12.0 V DC, 35 W RF output
– 45 Watts nominal @ 12.0 V DC, 8 W RF output
– 25 Watts nominal @ 12.0 V DC, 2 W RF output
Modem Specifications
Modulation/Link Rates GMSK: 4800, 8000, 9600, 16000, 19,200 bps
4FSK: 9600, 19,200 bps
Link Protocols PCC EOT, PCC FST, South, Stonex, TRIMTALK™v1 and SATEL®
Forward Error Correction Yes
Radio Specifications
Frequency Bands 390 MHz to 430 MHz, 430 MHz to 470 MHz (ADL Vantage) and 430-473
MHz (ADL Vantage Pro and ADL Vantage 35)
Frequency Control Synthesized 6.25 kHz tuning resolution
Frequency stability: ±1 PPM -40 ˚C to +85 ˚C
Channel Bandwidth 12.5 kHz and 25 kHz, software derived
RF Transmitter Output Programmable to 2 to 35 Watts (where permitted, depending on model)
Sensitivity –110 dBm BER 105
Type Certification All models are type accepted and certified for operation in the U.S.,
Canada, Mexico, Europe, Australia, New Zealand, and many other
countries
Environmental Specifications
33 ADL Vantage/ADL Vantage Pro/ADL Vantage 35
General Specifications
Enclosure IP67 (Dustproof and watertight to depth of
1 m for 30 minutes)
Operating Temperature
(RX)
ADL Vantage: –25 °C to +85 °C (–13 °F to +185 °F)
ADL Vantage Pro/ADL Vantage 35: -30 °C to +65 °C (–22 °F to +149 °F)
Operating Temperature
(TX)
ADL Vantage @ 4W: –25 °C to +65 °C (–13 °F to +149 °F)
ADL Vantage Pro @ 35W: –30 °C to +55 °C (-22 ° F to +131 °F)
ADL Vantage 35: -30 °C to +65 °C (–22 °F to +149 °F)
Storage Temperature ADL Vantage: –40 °C to +85 °C (–40 °F to +185 °F)
ADL Vantage Pro: –30 °C to +85 °C (–22 °F to +185 °F)
Vibration Spec MIL-STD-810F
Mechanical Specifications
Dimensions ADL Vantage: 8.89 cm L x 4.6 cm W x 16.0 cm H
(3.5 in L x 1.809 in W x 6.3 in H)
ADL Vantage Pro / ADL Vantage 35: 11.9 cm L x 8.6 cm W x 21.3 cm H
(with handle) (4.7” L x 3.4” W x 8.37” H)
Weight ADL Vantage: 705 g (1.55 lb)
ADL Vantage Pro / ADL Vantage 35: 1950 g (4.35 lbs)
Data/Power Connector 5-pin, #1-shell LEMO-type
RF Connector 50 Ohm, TNC-female
